Variable Auto Transformer 120 V - 140 V Or Custom Design

Dimensions in mm (Approx)

Variac 3 Ampere Transformer
Model no : 48US3F-1
Input : 48V AC 50/60Hz
Output : 0-48V
Dimensions
L 105mm X B 85mm X H 75mm
Mounting Holes : 27mm x 27mm
Weight : 1.2 kg

Dimensions in mm (Approx)

Variac 1.6 Ampere Transformer
Model no : 1.6F-1
Input : 230V AC 50/60Hz
Output : 0-230V
Phase : Single Phase
Type : Open Type
Dimensions
L 105mm X B 85mm X H 100mm
Mounting Holes : 27mm x 27mm
Weight : 1.7 kg

Dimensions in mm (Approx)

Variac 2 Ampere Transformer
Model no : US2F-1
Input : 120V AC 50/60Hz
Output : 0-140V
Phase : Single Phase
Type : Open Type
Dimensions
L 105mm X B 85mm X H 100mm
Mounting Holes : 27mm x 27mm
Weight : 1.8 kg

Dimensions in mm (Approx)

Variac 3 Ampere Transformer
Model no : US3F-1
Input : 120V AC 50/60Hz
Output : 0-140V
Phase : Single Phase
Type : Open Type
Dimensions
L 105mm X B 85mm X H 110mm
Mounting Holes : 27mm x 27mm
Weight : 2.0 kg

Dimensions in mm (Approx)

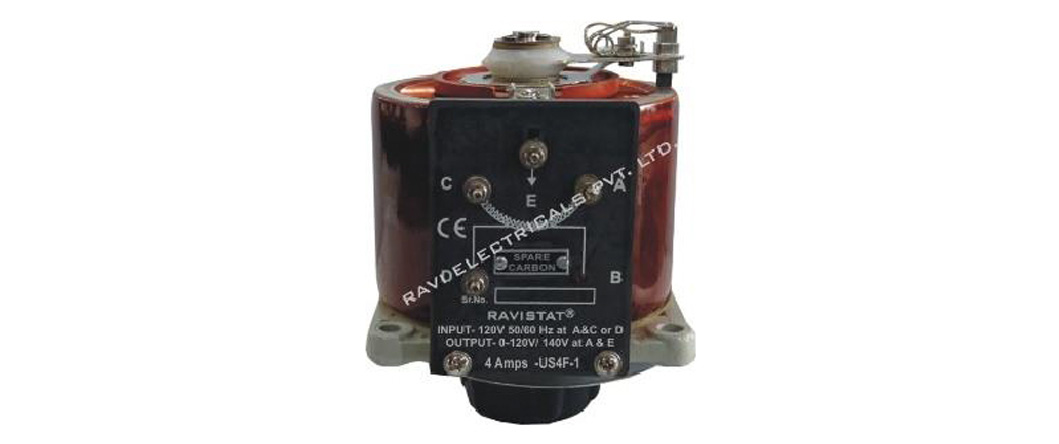

Variac 4 Ampere Transformer
Model no : US4F-1
Input : 120V AC 50/60Hz
Output : 0-140V
Phase : Single Phase
Type : Open Type
Dimensions
L 140mm X B 110mm X H 125mm
Mounting Holes : 92mm x 92mm
Weight : 3.0 kg

Dimensions in mm (Approx)

Variac 6 Ampere Transformer
Model no : US6F-1
Input : 120V AC 50/60Hz
Output : 0-140V
Phase : Single Phase
Type : Open Type
Dimensions
L 140mm X B 110mm X H 135mm
Mounting Holes : 92mm x 92mm
Weight : 3.7 kg

Dimensions in mm (Approx)

Variac 8 Ampere Transformer
Model no : US8F-1
Input : 120V AC 50/60Hz
Output : 0-140V
Phase : Single Phase
Type : Open Type
Dimensions
L 195mm X B 175mm X H 160mm
Mounting Holes : 146mm x 146mm
Weight : 6.0 kg

Dimensions in mm (Approx)

Variac 10 Ampere Transformer
Model no : US10F-1
Input : 120V AC 50/60Hz
Output : 0-140V
Phase : Single Phase
Type : Open Type
Dimensions
L 195mm X B 175mm X H 165mm
Mounting Holes : 146mm x 146mm
Weight : 6.5 kg

Dimensions in mm (Approx)

Variac 12 Ampere Transformer
Model no : US12F-1
Input : 120V AC 50/60Hz
Output : 0-140V
Phase : Single Phase
Type : Open Type
Dimensions
L 195mm X B 175mm X H 175mm
Mounting Holes : 146mm x 146mm
Weight : 7.7 kg

Dimensions in mm (Approx)

Variac 16 Ampere Transformer
Model no : US16F-1
Input : 120V AC 50/60Hz
Output : 0-140V
Phase : Single Phase
Type : Open Type
Dimensions
L 195mm X B 175mm X H 180mm
Mounting Holes : 146mm x 146mm
Weight : 8.6 kg

Dimensions in mm (Approx)

Variac 20 Ampere Transformer
Model no : US20F-1
Input : 120V AC 50/60Hz
Output : 0-140V
Phase : Single Phase
Type : Open Type/Panel Mounting
Dimensions
L 195mm X B 175mm X H 185mm
Mounting Holes : 146mm x 146mm
Weight : 9 kg

Dimensions in mm (Approx)

Variac 25 Ampere Transformer
Model no : US25F-1
Input : 120V AC 50/60Hz
Output : 0-140V
Phase : Single Phase
Type : Open Type/Panel Mounting
Dimensions
L 250mm X B 220mm X H 180mm
Mounting Holes : 176mm x 176mm
Weight : 14kg

Dimensions in mm (Approx)

Variac 30 Ampere Transformer
Model no : US30F-1
Input : 120V AC 50/60Hz
Output : 0-140V
Phase : Single Phase
Type : Open Type/Panel Mounting
Dimensions
L 250mm X B 220mm X H 190mm
Mounting Holes : 176mm x 176mm
Weight : 15.5kg
